BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal

BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal
Product name : BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal
Item : BT-SB-1
Country of Origin : China
Brand Name : BETTER
Standard : API 610, API Q1
Packing Details : Plywood cases, free-fumigating wooden cases
←[Previous Product]

Details:



BETTER Drilling Fluid Equip. offers a complete line of centrifugal sand pumps to suit for all kinds of drilling application. Size ranges from 3x2x13 through 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are availabe. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.



BETTER BT-SB centrifugal sand pumps is made of wear resistant materials, and can be used to handle abrasive cements and drilling fluids in drilling, production, well-servicing, and industrial application. The combination of wear resitant fluid end, merchanical seal and heavy duty power end provides the prolonged service life. The unified power ends in the series simplify the maintaining procedures, reduce the operation cost and spare parts stocked.



Features:

A.      Utilizing the same power end, to reduce greatly customers’ spare parts inventory requirement;

B.      Heavy-duty frame design made of cast iron for high strength and durability;

C.      Concentric and thicker casing eliminate vibration, turbulence, reduce the bearing load, shaft deflection;

D.     Open impeller with wider vanes for high viscosity drilling fluid transferring;

E.      Increased re-circulation areas to reducing wear;

F.      Heavy-duty shaft made of quality alloy steel to transmit the max. torque with min. shaft deflection;

G.      High quality outboard bearing of duplex angular contact bearings and inboard bearing of single roller bearing

H.     Double mechanical seals application, combining mechanical seal and 3-piece packing, standard mechanical seal to be Tungsten-Tungsten with highly polished sealing face and stainless steel spring, packing labyrinth ring as optional;

I.        Wear resistance nodular iron is adopted for main wetted parts to prolong the pump service life;

J.        External adjustment of impeller clearance extends pump performance life;

K.      BETTER’s pump parts are completely interchangeable with other brand pumps currently on the market, including Mission Magnum I, 2500 Supreme, Halco, MCM, SPD, Trinity, Harrisburg;

L.      Flexible coupling is adopted, consisting of coupling motor end, coupling rubber, coupling pump end. The accurate concentricity provides a longer life for motor and pump;







Common Application:

Barite, ferric oxide and mineral oil

Base drilling muds

Glass fibers

Sugar processing

Ash or coal conveyors

Cement

Mine de-watering

Lime slurry

Koalin clay

Crystalline forms

BETTER BT-SB Heavy-Duty Centrifugal Sand Pumps - Horizontal

Related Products :
BETTER SB-XP High Volume Centrifugal Sand Pumps
BT-SB-XP
BETTER SB-XP High Volume Centrifugal Sand Pumps
BETTER High Efficiency Shear Pumps
BT-SB-3
BETTER High Efficiency Shear Pumps

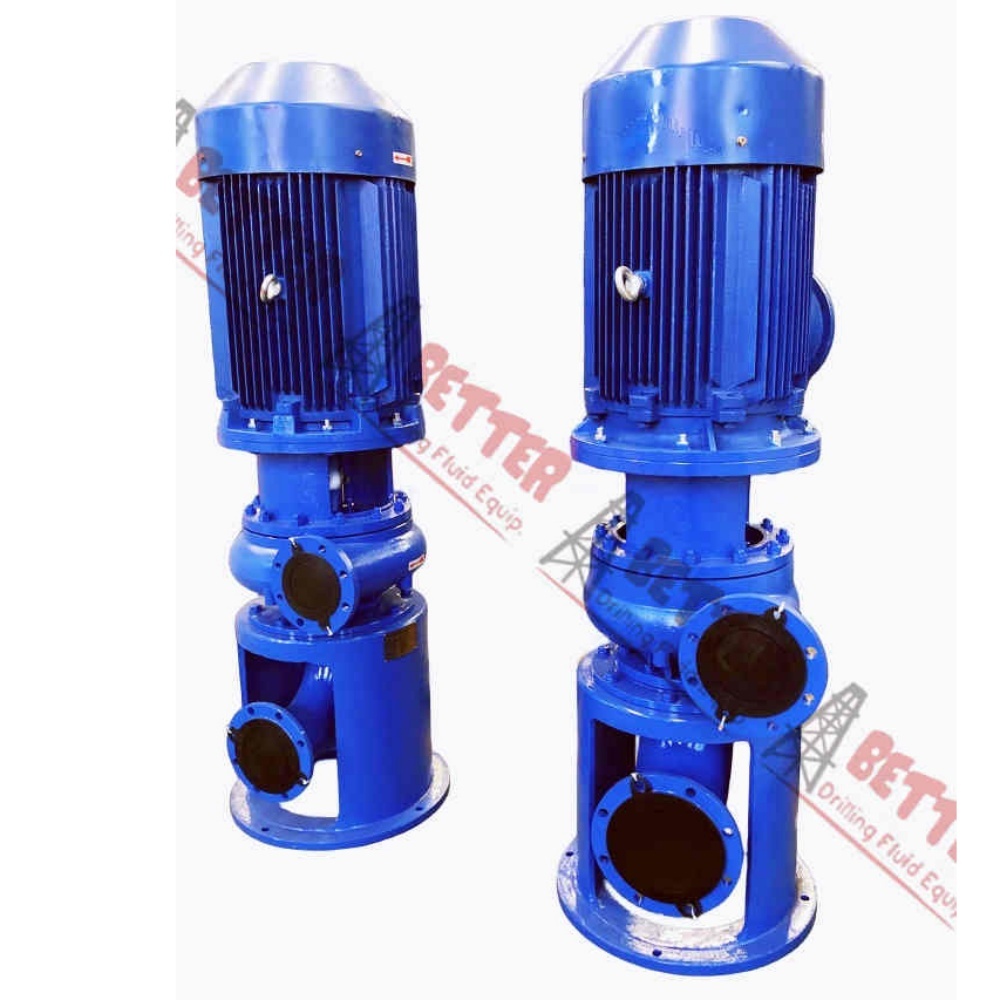

BETTER Close Coupled Electric Centrifugal Sand Pumps
