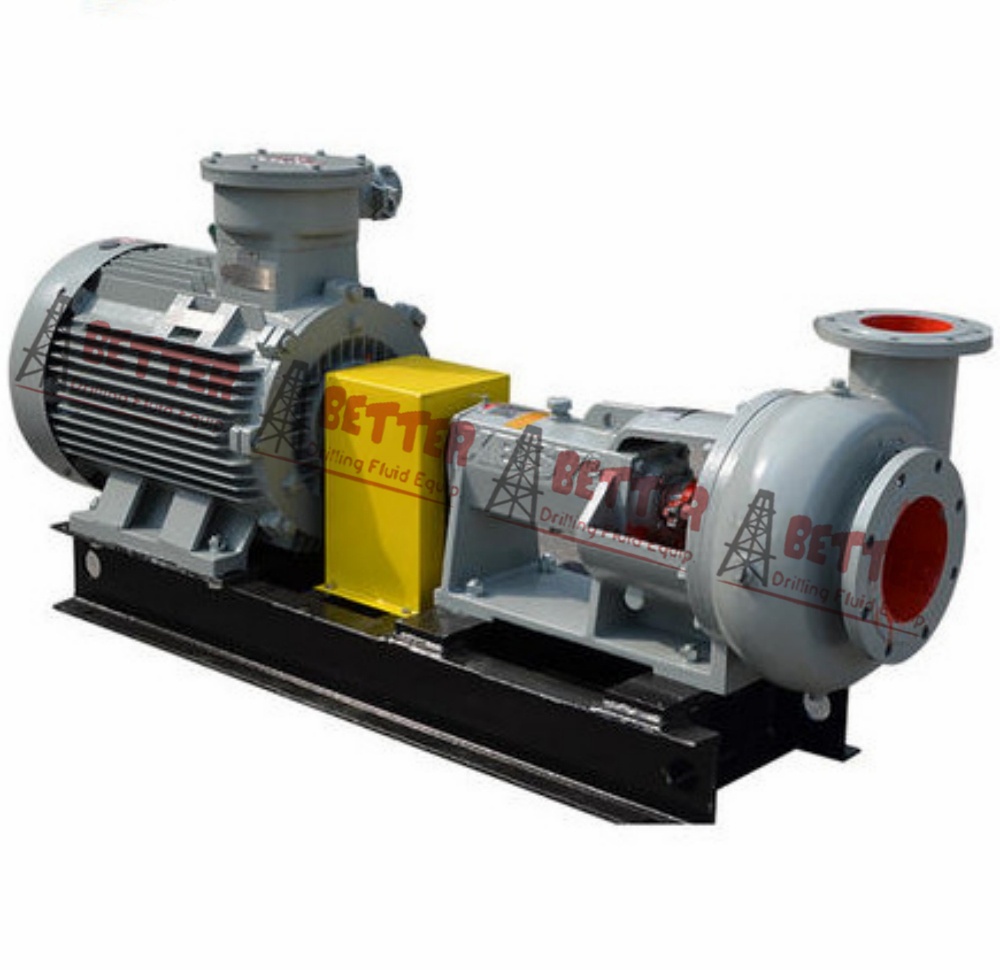

SB6x8J, SB6X8XFJ, SB5X6ZJ, SB5X6FJ, SB4X5ZJ, SB4X5J, SB3X4J, SB2X3J sand pump

XBSY SB STYLE CENTRIFUGAL PUMPS

General Introduction

BETTER could supply XBSY SB series centrifugal sand pump and replacement spare parts. SB6x8J, SB6X8XFJ, SB5X6ZJ, SB5X6FJ, SB4X5ZJ, SB4X5J, SB3X4J, SB2X3J, matching with electrical motors 7.5kw, 11kw, 15kw, 22kw, 30kw, 37kw, 45kw, 55kw, 75kw. They are degined by forward and reverse both rotation, also called clockwise and anti-clockwise. And the connection flanges are designed by Chinese size or Foreign size(ASME B16.5, CLASS 150).
Common applications,
·     Desanding and Desilting
·     Mud Processing
·     Water Well Drilling
·     Industrial Transfer Pumping
·     Saltwater Disposal and Water Flooding
·     Barite & mineral oil-based drilling mud,
·     Bentonite, salt water, slurry, chemical industry

Parameters

Model	Flow (m³/h)	Head (m)	Speed (rpm)		Efficiency (%)	Power (kW)		Weight (kg)	L×W×H (mm)
/	/	/	50 Hz	60 Hz	/	Shaft	Motor	/	/
SB6 × 8J - 13	240	37	1480	1780	67	36	75	1130	2056×698×1022
SB6 × 8J-12½	200	36	1480	1780	66	29.7	55	1000	1996×698×972
SB6 × 8J - 12	200	33	1480	1780	64	28	45	850	1916×638×917
SB5 × 6J-12½	200	33	1480	1780	64	28	45	785	1806×528 ×884
SB5 × 6J - 12	180	31	1480	1780	63	24.1	37	760	1781×528×864
SB5 × 6J-11½	160	28	1470	1780	62	19.7	30	650	1746×528×844
SB5 × 6J - 11	140	22	1470	1780	62	13.5	22	545	1686×516×764
SB4 × 5J - 10	150	25	1470	1780	61	16.8	22	480	1600×510×705
SB4 × 5J - 9	93	20	1460	1760	58	8.8	15	400	1533×510×725
SB3 × 4J - 10	85	26	1460	1760	61	9.9	15	360	1405×443×682
SB3 × 4J-9½	80	23	1460	1760	61	8.2	11	340	1365×443×682
SB3 × 4J - 9	54	18	1440	1750	60	4.4	7.5	290	1245×443×650
SB2 × 3J - 10	55	22	1460	1760	60	5.5	11	320	1352×446×682
SB2 × 3J - 9	50	18	1440	1750	56	4.4	7.5	260	1232×446×650
SB2 × 3J - 8	40	16	1440	1750	54	3.2	5.5	245	1192×446×650
SB2 × 3J-7½	25	11	1440	1750	50	1.5	4	223	1161×446×600

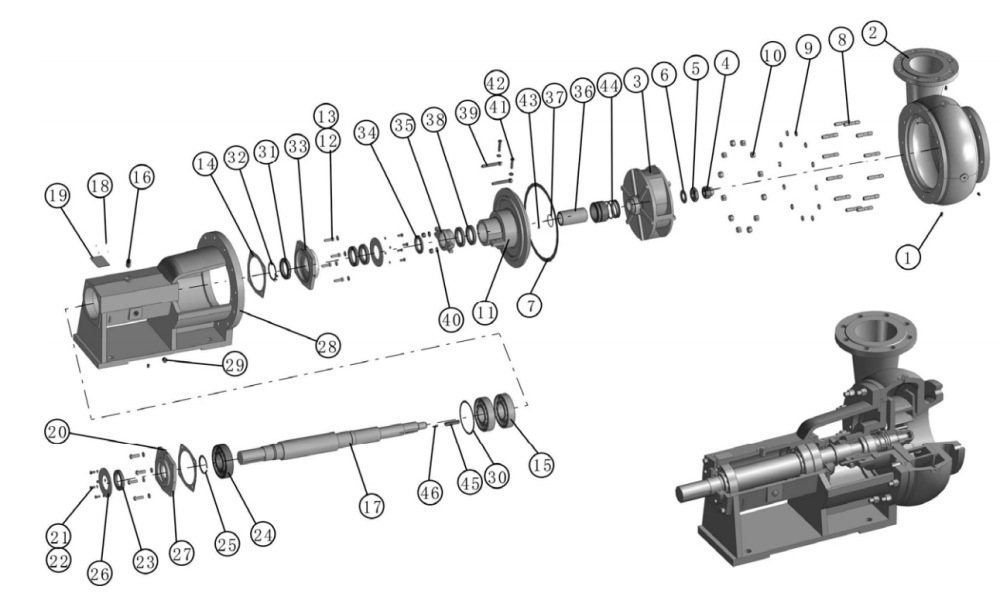

Pump Head Exploded View of SB6×8FJ Reverse Sand Pump and Part List

Item Part Name＆Specification Part No. Drawing No. Qty.
1 Plug，ZG1/2″ X01173002 GB3289.31-82 5 X01177002（Chinese Flange）SB68F-7.1.1
2 Casing X01277002（American Flange） SB68FC-7.1.1A 1 45kW X01175002 SB68FJ-61.1.1 55kW X01176002 SB68FJ-62.1.1 50Hz 75kW X01177003SB68FJ-63.1.1 45kW X11175002 SB68FJ-61.1.1A 55kW X11176002 SB68FJ-62.1.1A

3 Impeller 60Hz 75kW X11177003 SB68FJ-63.1.1A 1

4 Impeller Acorn Nut，M30×2 X01177004 SB68F-7.1.31

5 Impeller Flat Nut，M30×2 X01177005 SB68F-7.1.4 1

6 Impeller Flat Washer，30 X01173007 SB68-1.1.13 1

7 Casing Gasket X01173008 SB68-1.1.1 1

8 Stud，M16×75 W01402180 GB/T899-1988 12

9 Springwasher，16 W05102016 GB/T93-1987 12

10 Nut，M16 W03012016 GB/T41-2000 12

11 Mechanical Seal Stuffing Box X01173009 SB68J-4.1.7A 1

12 Bolt，M12×35 W01042123 GB/T5783-2000 8

13 Springwasher，12 W05102012 GB/T93-1987 8

14 Bearing Cover Gasket X01173010 SB68-1.1.6 2

15 Inboard Bearing，7314ACM W21157314 GB/T292-1994 2

16 Oil Plug X01173011 SB68-1.1.16 1

17 Shaft X01177006 SB68FJ-61.1.2 1

18 Rivet，2×6 W40595026 GB/T827-1986 4

19 Nameplate W99116001 SBMP-ZY 1

20 Grease Fitting，M10×1 W16010010 JB/T7940.1-1995 1

21 Bolt，M8×16 W01042889 GB/T5783-2000 8

22 Springwasher，8 W05102008 GB/T93-1987 8

23 Oil Seal，65×90×12 W12124653 GB/T9877.1-1988 3

24 Outboard Bearing，6314E W21156314 GB/T276-1994 1

25 Crclip for Shaft，70 W05293070 GB/T894.1-1986 1

26 Outboard Bearing Cover baffle X01173013 SB68-1.1.20 2

27 Outboard Bearing Cover X01173014 SB68-1.1.21 1

28 Frame X01173015 SB68-1.1.23 1

29 Oil Level Gauge，20×1.5 W17000020 1

30 Inboard Bearing Gasket W29010068 SB68 1

31 Bearing Lock Nut，M68×2 W03370068 GB/T812-1988 1

32 Bearing Lock Washer，68 W05252068 GB/T858-1988 1

33 Inboard Bearing Cover X01173017 SB68-1.1.22 1

33A Grease Fitting，90° M10×1 W16070010 JB/T7940.2-1995 1

34 Deflector W99131101 SB56-18.1.11 1 82

35 Gland Set X01173018 SB68J-4.1.4.0 1

36 Shaft Sleeve X01173020 SB68J-4.1.5 1

37 O-ring，55×3.1 W1111550C GB/T1235-1976 1

38 Packing，12×12 W11311112 2

39 Gland Bolt，M12×80 W01144131 GB/T798-1988 2

40 Flatwasher，12 W05010012 GB/T97.1-2002 2

40A Nut，M12 W03012012 GB/T41-2000 2

41 Bolt，M10×50 W01022096 GB/T5782-2000 2

42 Nut，M10 W03012010 GB/T41-2000 2

43 Rotated-proof Pin X01173021 SB68J-4.1.6 1

44 Mechanical Seal W13110002 VJ68-R 1

45 Impeller Key，C14×70 W08021470 GB/T1096-2003 1

46 Shaft Sleeve Key，C6×25 W08120625 GB/T1567-1979 1

Pump Head:

45kW

X01175001

SB68FJ-6.1.0

55kW

X01176001

SB68FJ-5.1.0

75kW

X01177001

SB68FJ-4.1.0

45kW

X01275001

SB68FJC-6.1.0

55kW

X01276001

SB68FJC-5.1.0

75kW

X01277001

SB68FJC-4.1.0

45kW

X11175001

SB68FJ-6.1.0A

55kW

X11176001

SB68FJ-5.1.0A

75kW

X11177001

SB68FJ-4.1.0A

45kW

X11275001

SB68FJC-6.1.0A

When you want to replace new Centrifugal Pumps, as well as refubishment and repair of your existing Mission Magnum I Centrifugal Pump or MCM 250 Pump, PLEASE DO NOT HESITATE TO CONTACT US.
