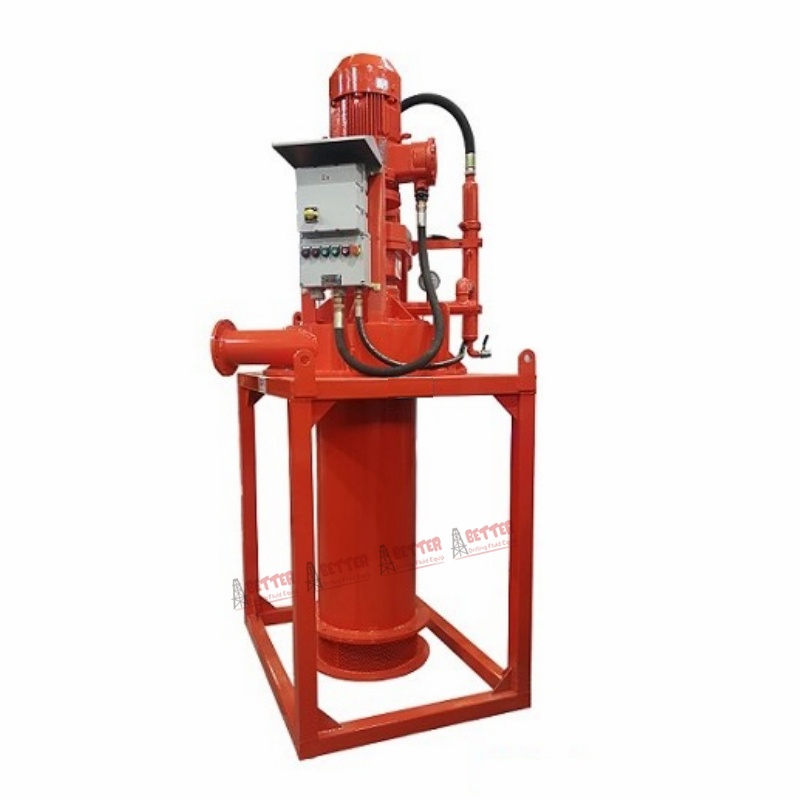

MI SWACO CD1400 CENTRIFUGAL DEGASSER, atmospheric Degasser, vacuum degasser

Centrifugal degasser is the most effective and efficient meets the stringent requirement. It was designed to achieve an effective gas-liquid separation and ensure a smooth transition of toxic gases to the exhaust pipe, and ensure the best mud recovery and stability mud viscosity

It was consisted of ASME certified degasser vessel, vacuum pump, motor and control cabinet.When the drilling mud from the shaker mud tank gets sucked into the vacuum degasser by a vacuum created by a regenerative vacuum/blower. The vacuum degasser then bursts the mud bubbles, causing a release of harmful gasses such as methane, H₂S, and CO₂ from the mud to the surface. The toxic gases then discharged away from the rig at a safe distance to a flare line or other point of disposal.

Features & Benefits
Capacity up to 300m3/h
Maximum gas removed 30 m3/h
Maximum vacuum of about 20 inch
Liquid inlet size 20 in
Liquid outlet size 6 in
Gas outlet size 2 in
Main motor 22kw
Fan motor 1.1kw
Dimension 1150 x1054 x3110mm
NACE 0175 Certified; reduced cost of maintenance
Ex equipment design & manufacturing
ATEX Zone 1 Certified, CE mark
Smallest footprint and Compact Design
Handle high density and high viscosity mud
Alternative to mud agitator
Recovers liquid density & eliminate hazardous gases
Efficient degassing and cleaning of drilling mud
Emergency Operation Provisions
Recover mud gravity & stabilise mud viscosity
