Including Horizontal and vertical types. Helical bevel gear agitator is preferable, as the helical bevel gear box is more stable and reliable and more efficient to shaft save more energy than the helical worm and wheel gearbox.
Horizontal worm gear type agitator, this is the most popular agitator used in oil and gas mud tank because it’s cost effective. There is couple options for agitator to protect gear or options without couple for saving cost.Vertical agitator, this is well used for vertical tank with small footprint but higher height.

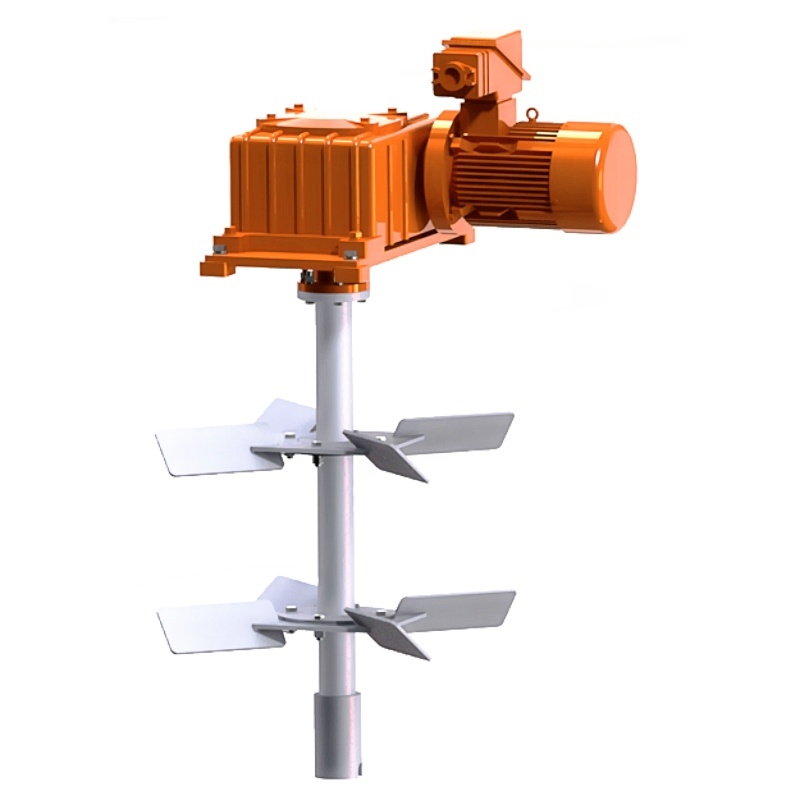

BETTER could provide with worm, wheel gearbox and helical bevel gearbox at any length shaft, direct connection or coupling connection are available.
Feature
Famous brand motor and gearbox
FAG, SKF or other top brand bearing
Flexible configuration
Custom built service available
Compact and small footprint
Specification
|
Model |
DMA5.5 |
DMA7.5 |
DMA11 |
DMA15 |
|
Motor |
5.5KW(7.5hp) |
7.5KW(10hp) |
11KW(15hp) |
15KW(20hp) |
|
Impeller Speed |
60/72RPM |
60/72RPM |
60/72RPM |
60/72RPM |
|
Single Impeller |
850mm |
950mm |
1050mm |
1200mm |
|
Dual Impeller |
N/A |
Up:800mm |
Up:850mm |
Up:950mm |
|
Down:800mm |
Down:850mm |
Down:950mm |
||
|
Ratio |
25:01:00 |
25:01:00 |
25:01:00 |
25:01:00 |
|
Dimension |
870×600×480mm |
906×600×480mm |
1075×650×525mm |
1170×720×565mm |
|
Shaft Length |
Depends on tank depth |
|||
|
Power System |
380V/50HZ,460V/60HZ (Customer built) |
|||
|
Remark |
Explosion proof motor is available, shaft stabilizer is available |
|||
How to select mud agitator?
According to mud tank specification and drilling mud property(volume, dimension, SG)
Confirm the exact model and quantity we need (usually 3 meters per set)
Confirm the detail specs of impeller and shaft per tank size(tank height/depth)
To check which type reducer you prefer(Helical worm, helical bevel)
Other special requirements (Reduce ratio, installation position, color)
