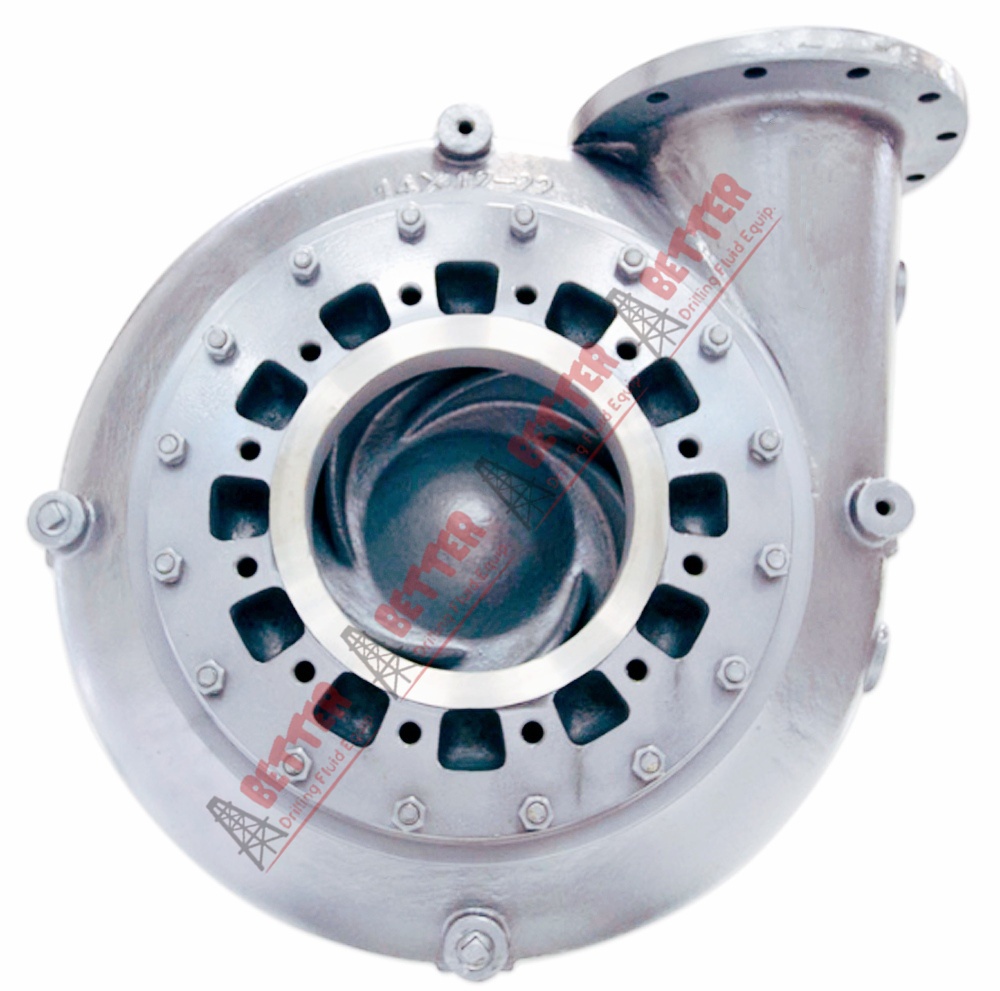

MISSION MAGNUM XP STYLE CENTRIFUGAL PUMPS

General Introduction

BETTER SBXP series Centrifugal Pump is designed equivalent to NOV Mission Magnum XP series Centrifugal Pumps, which is ideal for pumping heavy slurries in high volume, abrasive and corrosive. It is popular mounted on frac truck as blender pump due to its small footprint. Typical Configuration: 12 x 10 x 23 and 14 x 12 x 22

Feature
·     Ideally for pumping high volumes of heavy slurries
·     Compact structure, with small footprint
·     Flow rates 3000-7500 GPM
·     Head pressure 75~410 feet
·     Material in hard iron, high chrome iron, High chrome alloy or hard iron material options for different applications
·     Equivalent to MCM XL series pump
·     Perfect for slurries of abrasive, corrosive, plain tough topump
·     Designed for continuous operation and minimalmaintenance
·     Widely used on Frac trucks for blending

Common Applications
·     Blending on frac trucks
·     Transferring Sand slurry/Sewage/Waste Slurry/Slag/Boat Mud
·     Lead and Zinc ore and tailings /Dredge tailings
·     Copper, bauxite, and quarry slurries
·     Mineral Mining
·     Nickel shot/Spent liquor/Flay ash/Bottom ash
·     Paper Pulp Processing

Standard Fluid End Parts Material( casing, impeller, stuffing box)
Description Material Name C Mn Si Ni Cr Mo Cu P V S Details Hardness
A05 Ultrachrome 2.92% 0.98% 0.54% 0.8% 26~28% <0.8% - 0.062% - 0.051% 27%Cr Erosion Resistant White Iron 58-62HRC

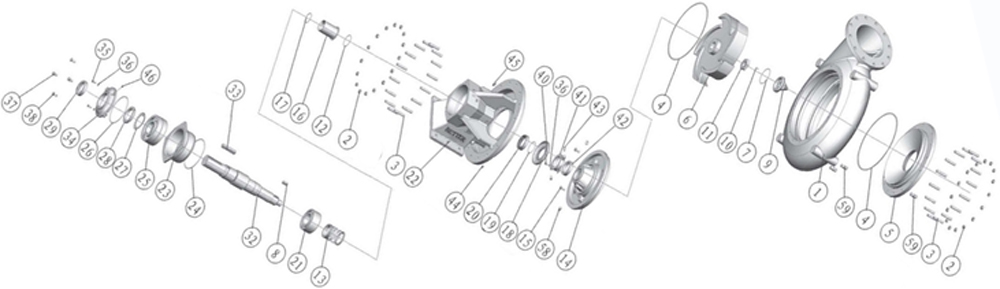

Exploded View




BETTER SBXP series CENTRIFUGAL PUMP PARTS

ITEM

QTY.

EA

BETTER

MISSION

DESCRIPTION

1

1

BT-24022-01-30

651120206

Casing,14x12x22, Hard Iron

1

BT-25008-01-30

662001001

Casing, 12x10x23, Hard Iron

1

BT-25289-01-30

662002089

Casing,8x6x18, Hard Iron

1

BT-24022-01-AY

662001007

Casing,14x12x22, High Chrome

1

BT-25008-01-AY

662002099

Casing, 12x10x23, High Chrome

1

BT-25289-01-AY

/

Casing,8x6x18, High Chrome

2

32

BT-3932-61

648402014

Nut, Casing

3

32

BT-3862-86

658403308

Stud, Casing 14x12x22 &12x10x23

16

BT-3862-90

601208285

Stud, Casing 8x6x18

16

BT-3862-92

648401118

Stud, Casing 8x6x18

4

2

BT-10399-55-01

658410501

Gasket, Casing 14x12x22

2

BT-25012-01-01

661010001

Gasket, Casing 12x10x23

2

BT-25012-02-05

662010032

Gasket, Casing 8x6x18

5

1

BT-24021-01-30

654310309

Cover, Front 14x12x22, Hard Iron

1

BT-25009-01-30

662014003

Cover, Front 12x10x23, Hard Iron

1

BT-25291-02-03

662014129

Cover, Front 8x6x18, Hard Iron

1

BT-24021-02-AY

662014051

Cover, Front 14x12x22, High Chrome

1

BT-25310-01-AY

662014165

Cover, Front 12x10x23, High Chrome

1

BT-25291-02-AY

/

Cover, Front 8x6x18, High Chrome

6

1

BT-24024-X0-HS

662005003

Impeller 22”, 14x12, Hard Iron

1

BT-25010-Y0-30

662005002

Impeller 23”, 12x10, Hard Iron

1

BT-25292-T0-30

662005018

Impeller 18”, 8x6, Hard Iron

1

BT-24024-X0-AY

662005010

Impeller 22”, 14x12, High Chrome

1

BT-25010-Y0-AY

662005024

Impeller 23”, 12x10, High Chrome

1

BT-25292-T0-AY

/

Impeller 18”, 8x6, High Chrome

7

1

BT-7496-158

958408109

Seal, Impeller Nose

8

1

BT-4372-29-21

658405006

Key, Impeller

9

1

BT-24025-04-25L

652309601

Nose, Impeller (Hex design)

1

BT-24025-01-25L

652309600

Nose, Impeller (2 Flat design)

1

BT-24025-03-25L

662014054

Nose, Impeller (2 Flat iron nitride)

10

1

BT-14430-19

658411400

Screw, Set

11

1

BT-24026-25L

658414255

Jam Nut

12

1

BT-7496-153

658408059

Seal, Impeller

13

1

BT-24036

658416102

Mechanical Seal (Crane type)

14

1

BT-24027-01-30

653322305

Stuffing Box, Mech.Seal(14x12), Hard Iron

1

BT-24027-02-30

662014002

Stuffing Box, Mech.Seal(12x10), Hard Iron

1

BT-25290-02-30

662014128

Stuffing Box, Mech.Seal(8x6), Hard Iron

1

BT-24027-02-AY

662014052

Stuffing Box, Mech.Seal(14x12), High Chrome

1

BT-25309-01-AY

/

Stuffing Box, Mech.Seal(12x10), High Chrome

1

BT-25290-02-AY

/

Stuffing Box, Mech.Seal(8x6), High Chrome

15

2

BT-3861-117

648401016

Bolt, Stuffing Box

16

1

BT-24029-21BZ

656422201

Sleeve, Shaft

17

1

BT-7496-234

658408505

Seal, Sleeve

18

1

BT-24030-01-13

654311604

Slinger

19

1

BT-7496-238P

658408554

Seal, Slinger

20

2

BT-20619-03

658413604

Oil seal, Inboard Bearing

21

1

BT-20615-2

658413000

Bearing, Inboard

22

1

BT-24031-01-01

654312008

Frame 14x12

1

BT-24031-02-01

662014001

Frame 12x10

1

BT-25293-02-01

662014130

Frame 8x6

23

1

BT-24032-01-01

654313006

Housing, Bearing

24

1

BT-7496-272

658408901

Seal, Bearing Housing

25

1

BT-20616-2

658413307

Bearing, Outboard 14x12

2

BT-20616-3

661009001

Bearing Outboard 12x10 & 8x6

26

1

BT-7496-267

658408802

Seal, Bearing cover

27

1

BT-6124-6

658407002

Lock Washer, Bearing

28

1

BT-6123-6

658406509

Lock Nut, Bearing

29

2

BT-20619-04

658413638

Oil seal, Bearing Cover

32

1

BT-24028-33

656420007

Shaft

33

1

BT-4372-30-21

658405055

Key, Coupling

34

1

BT-24033-01-01

654314004

Cover, Bearing O.B.

35

2

BT-3861-139

648401081

Bolt, Bearing Cover

36

4

BT-3936-19-L8

648402030

Washer, Bearing Cover

37

2

BT-3932-62

658404702

Nut, Bearing Housing

38

4

BT-3861-138

648401057

Bolt, Bearing Housing

40

2

BT-3861-165

601408289

Bolt, Packing Gland

41

2

BT-24034-01-13

654315100

Gland, Packing Half

42

1

BT-8264-344-K

658409503

Packing Set

43

2

BT-3909-04-87

658404207

Screw, Cap

44

1

BT-8505-1

601474695

Plug, Grease

45

1

BT-8267-1

601473689

Breather

46

1

BT-19368

661010020

Grease, Fitting

58

2

BT-8505-2-01

658409859

Plug, Pipe

59

1

BT-8505-6-01

658410006

Plug, Pipe

When you want to replace new Centrifugal Pumps, as well as refubishment and repair of your existing Mission Magnum XP Centrifugal Pump or MCM XL Pump, PLEASE DO NOT HESITATE TO CONTACT US.
