KEMPER STYLE 16″ HAMMERSEAL UNION BT-PS160A

Product No.:202310719241

  • Details

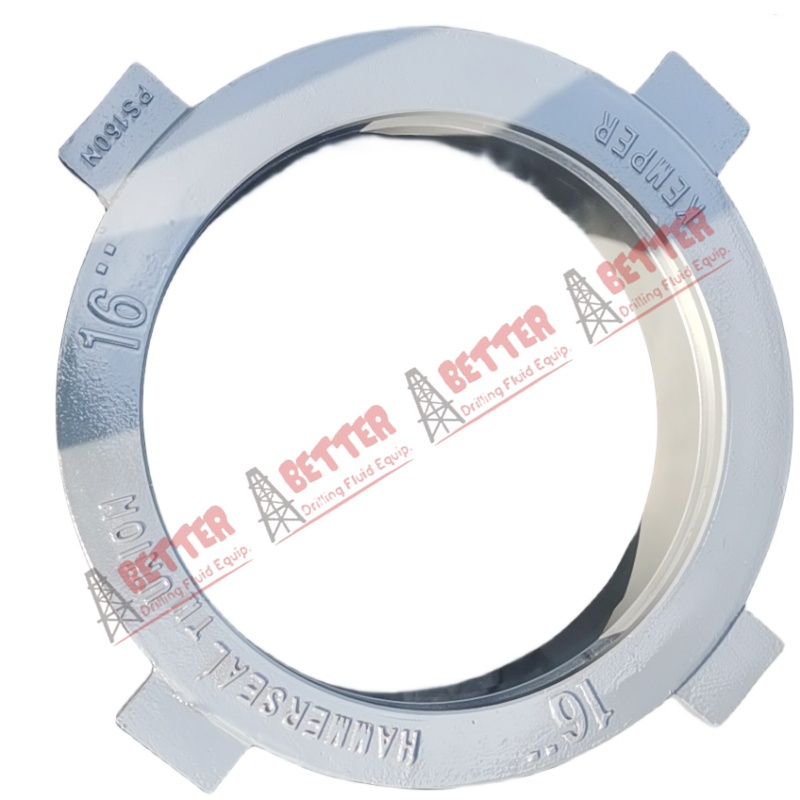

KEMPER STYLE 16″ HAMMERSEAL UNION BT-PS160A

Hammer seal Union is usually used for connecting mud tanks, even if mud tanks aren’t aligned perfectly (up to 7°), we can hammer these tough unions tight to a non-leak seal. The externally threaded female port welds to a Schedule 80 stub pipe at the tank wall. The connecting pipe extends through the nut component, the o-ring and then the female portion of the union. When the internally threaded lug nut is hammered tight onto the female, the o-ring is compressed into an oblong cross section to seal up to 150-psi against the outside diameter of the connecting pipe. Hammerseal Union is ideal to provide the solution for mud tank’s connection. BETTER hammerseal union is designed basing on Kemper company, which can provide a quick joints and easy operation.

Features-

➢ Casting steel sub & nut, and molded nitrile O-ring (NBR) provides a compression seal

➢ Adopt ANSI/EU Std. Butt-weld end connection, GB Standard available upon request

➢ Consistent to KEMPER Hammer-seal Union

➢ Grey or Red Nut & Sub, customized color & logo available

Technical Parameter-

➢ Working medium: Oil based mud, water-based mud or other drilling fluid

➢ Medium temperature: 0℃~90℃, Viton seal for Hi-temp.

➢ Ambient temperature:-40℃~55℃

➢ Sealing fluid pressures up to 150 psi

Specification

BETTER HAMMERSEAL UNIONS

Part No.

Connects to Nominal Size

Female Component Welds to

Description

BT- PS300A

3”

4”

3” Hammerseal Union assembly

BT- PS400A

4”

6”

4” Hammerseal Union assembly

BT- PS600A

6”

8”

6” Hammerseal Union assembly

BT- PS800A

8”

10”

8” Hammerseal Union assembly

BT- PS100A

10”

12”

10” Hammerseal Union assembly

BT- PS120A

12”

14”

12” Hammerseal Union assembly

BT- PS140A

14”

16”

14” Hammerseal Union assembly

BT- PS160A

16”

18”

16” Hammerseal Union assembly

BT- PS180A

18”

20”

18” Hammerseal Union assembly

BT- PS200A

20”

22”

20” Hammerseal Union assembly

BT- PS220A

22”

24”

22” Hammerseal Union assembly

BT- PS240A

24”

26”

24” Hammerseal Union assembly

BT- PS260A

26”

28”

26” Hammerseal Union assembly

BT- PS280A

28”

30”

28” Hammerseal Union assembly

Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.
