INTEGRAL FITTINGS


BETTER weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

Integral Fitting Longsweep Elbow, Chiksan Longsweep Elblow, Integral unions, belong to the Integral Fittings family. Our union crosses are fully designed, produced, and tested according to API 6A and API 16C standards. These crosses are widely used in cementing, fracturing and testing lines, and other well service applications. Crosses for both standard service and sour service are available. Our Hammer Union Crosses are interchangeable with FMC Weco’s and other major brands.

Material

Integral Forged Alloy Steel

Material Standards

AISI 4130, AISI 4140, 35CrMo, 42CrMo

Size

1”, 2", 3", 4"

End Conection

Fig.602, Fig.1002, Fig.1502, Fig.2002

Usage

Oil and gas, offshore industries

Pressure

Standard Service (15000 PSI)
H2S Service, Sour Gas (10000 PSI)

Temperature Range

-46~121 c degree

Standard

API Spec.16A, 16C, NACE-MR-01-75

Origin

CHINA

Brand

BETTER

Fitting Type

Size

Configuration

End Connection

CWP Psi

Part No.

Weight kgs

Longsweep Elblow

2

M x F

Fig.1502

10000

3260438

12.3

Longsweep Elblow

3

M x F

Fig.1502

10000

3262406

23

Lateral

2

F x M x F

Fig.1502

10000

P500724

24.4

Lateral

2

M x F x F

Fig.1502

10000

3261421

24.4

Wye

2

M x F x F

Fig.1502

10000

3261421

12.3

Wye

2

M x F x F

Fig.2202

15000

3248668

12.6

Cross

2

F x F x F x M

Fig.1502

10000

3261015

29.4

Cross

2

F x F x M x M

Fig.1502

10000

3260888

30.2

Cross

2

M x F x F x F

Fig.2202

15000

3259191

34

Cross

2

M x F x M x M

Fig.2202

10000

P501752

36.7

Cross

3

F x F x M x F

Fig.1502

10000

P501753

85.3

Tee

2

F x F x F

Fig.1502

10000

3265042

23

Tee

2

F x F x M

Fig.1502

10000

3260359

25.7

Tee

2

F x M x F

Fig.1502

10000

3259575

25.7

Tee

2

F x M x M

Fig.1502

10000

3259188

29

Tee

2

M x M x F

Fig.1502

10000

3263209

29

Tee

2

M x M x M

Fig.1502

10000

3265075

33.2

Tee

2

F x M x F

Fig.2202

15000

3263266

25.7

Tee

2

F x M x M

Fig.2202

15000

3259225

32.2

Tee

3

F x F x M

Fig.1502

10000

3265044

76.2

Tee

3

F x M x F

Fig.1502

10000

P505146

50.8

Tee

3

M x F x M

Fig.1502

10000

P500322

62.1

Tee

3

M x M x F

Fig.1502

10000

3263553

62.1

Elbow

2

F x F

Fig.1502

10000

3269540

18.6

Elbow

2

M x F

Fig.1502

10000

3260360

23.1

Elbow

2

F x M

Fig.2202

15000

3264680

23.8

Elbow

3

M x F

Fig.1502

10000

3262076

67.1

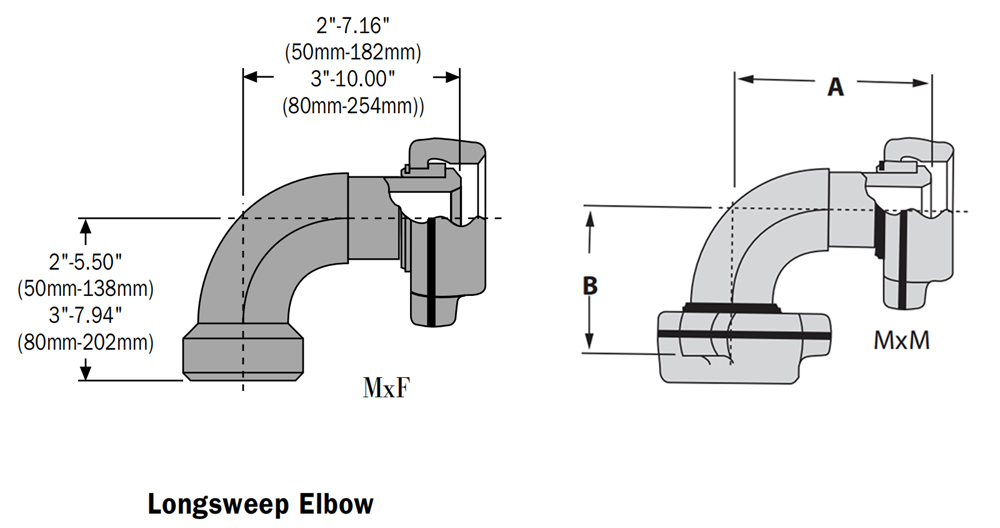

Longsweep Elbow standard

Nom.Size in.

End Connection

CWP Psi

Part No.

Dimensional Data

Weight kgs

MXM

MXF

MXM

MXF

A mm

B mm

A mm

B mm

2

Fig.602

6000

P506171

3262554

182

130

182

140

10

Fig.1502

15000

3261768

3260403

182

130

182

140

12.6

Fig.2002

20000

182

130

182

140

3

Fig.602

6000

P506174

3259683

254

193

254

202

24.5

Fig.1502

15000

P506175

3259845

254

193

254

202

22.9

Fig.2002

20000

254

193

254

202

4

Fig.602

6000

P506175

P506172

321

246

321

246

40.4

Fig.1502

15000

P506177

3261102

321

246

321

246

40.4

Fig.2002

20000

321

246

321

246

Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.


How to Order

BETTER is committed to being one of your valued suppliers. We are dedicated to answering your inquiries and processing your orders in the shortest time. Your help by supplying as much relevant information as possible will greatly improve our ability to meet or exceed your expectations.

When ordering standard items for known applications, all that is required is the part numbers with a brief description; when ordering non-standard items for special applications, some extra information will be required as below:

1.    Size, pressure rating, model and style

2.    Type of fluid to be handled

3.    The operating temperature

4.    If special material required

5.    If special documentation required

6.    Other application mechanical loads or movement
