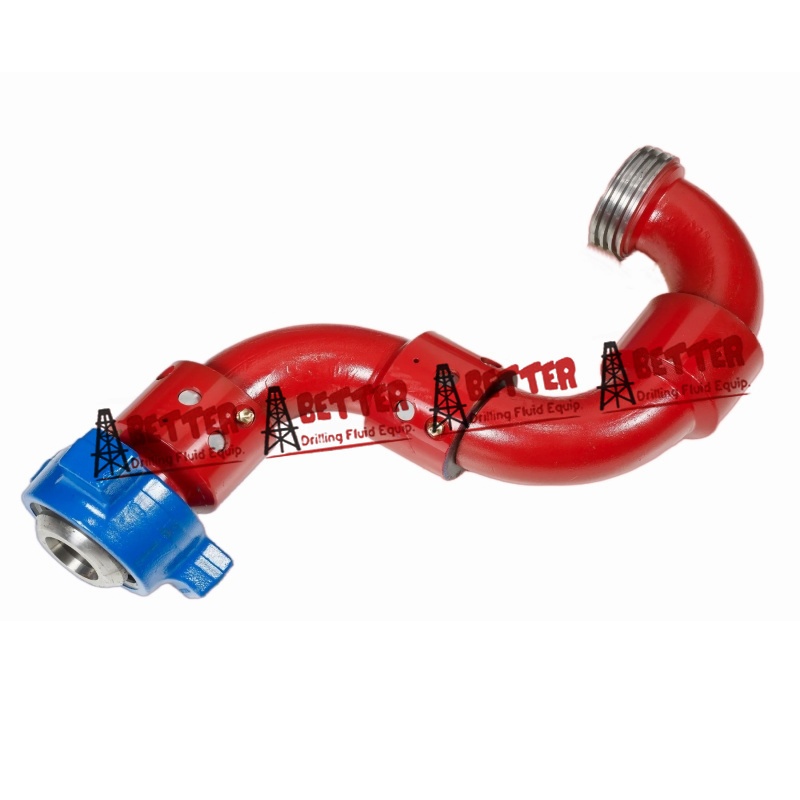

Swivel Joint Style 80 Fig.1502 MxM Std service Sour Service

Product No.:2023101210191

  • Details

FMC Chiksan Style Longsweep (Long Radius) Swivel Joints

BETTER Chiksan style Longsweep Swivel Joints are forged and heat-treatment from alloy steel, it can work in high pressure situation with strong strength and hardness. We never compete the price with our competitors by losing the quality, to ensure the optimum wall thickness and complete production procedure is what we promised for longer service life and security working. We can supply style 10, style 20, style 30, style 40, style 50, style 60, style 70, style 80, style 100, a complete styles, sizing 2”, 3” and 4” with weco wing union fig.1502 end connection, to work up to 20000psi. It is suitable for standard, lower temperature or h2s sour gas envioronment.

Swivel joints are divided into short radium and long radius. Long radius swivel joint can minimize fluid shock,to provide a steady performance; but when space limited, short radium swivel joint can work.

Material

Integral Forged Alloy Steel

Material Standards

AISI 4130, AISI 4140, 35CrMo, 42CrMo

Style No.

Style 10, 20, 30, 40, 50, 60, 70, 80, 100

Size

2", 3", 4"

End Conection

Fig.1502

Usage

Oil and gas, offshore industries

Pressure

Standard Service (15000 PSI), H2S Service, Sour Gas (10000 PSI)

Temperature Range

-46~121 c degree

Standard

API Spec.16A, 16C, NACE-MR-01-75

Origin

CHINA

Brand

BETTER

2” and 3” union combinations-red-elastomeric packing with brass anti-extrusion ring – 15000psi

Size

2”

3”

Product Code

LS-15

LS-15

Style 50 swivel joint with fig.1502 MXF

3139475

3144787

Weight lbs

50

101

Style 10 swivel joint with fig.1502 MXF

3139905

3144788

Weight lbs

56

124

Style 10 swivel joint with fig.1502 MXM

3139477

3144786

Weight

67

135

3” Union combination – black – elastomeric packing with brass anti-extrusion ring – 10000psi

Size

3”

Product Code

LS-10

Style 50 swivel joint with fig.1002 MXF

3144912

Weight lbs

101

Style 10 swivel joint with fig.1002 MXF

3144915

Weight lbs

124

Style 10 swivel joint with fig.1002 MXM

3144913

Weight

134

How to Order Swivel Joint

1.    Swivel joint type( low pressure, long sweep)

2.    Pipe size

3.    Style number of swivel joint

4.    Material of construction

5.    End connections

6.    Product being handled( if acid, give concentration)

7.    Cold working pressure and max.pressure

Replacement parts (Longsweep, standard service)

Size inch

1

1 1/2”

2

3

4

Longsweep Model

LS-10, LS-15

LS-10, LS-15

LS-10, LS-15

LS-20

LS-10, LS-15

LS-20

LS-15

Replacement Parts

Packing

Grease retainer

Ball bearings

Ball plugs (3)

Snap rings (3)

Lube plug

O-ring

Set screw

3139520

3139551

3239220(60)

3181788

3226873

3181790

-

-

3117984

3139791

3239220(81)

3181788

3226873

3181790

-

-

3139672

3103964

3239222(72)

3182488

3230487

3181790

3226704

3155720

3117948

3103964

3239222(72)

3182488

3230487

3181790

3226704

3155720

3121181

3143224

3239222(99)

3182488

3230487

3181790

3226725

3181790

3124057

3127401

3150527(78)

3145140

3239254

3181790

3151885

3181790

3127393

3127401

3150527(78)

3145140

3239254

3181790

3151885

3181790

Full Replacement Parts set

3143455

3143327

3139666

3144633

3144795

3145398

3145399

Packing set

Packing

Grease retainer

3143454

3139520

3139551

3142960

3117984

3139791

3143797

3139672

3103964

3144636

3117948

3103964

3144796

3121181

3143224

3145262

3124057

3127401

3145264

3127393

3127401

O-ring

-

-

3226704

3226704

3226725

3151885

3151885

Ball Plug Set

Ball plug

Snap Ring

3143211

3181788

3226873

3143211

3181788

3226873

3144007

3182488

3230487

3144007

3182488

3230487

3144007

3182488

3230487

3145264

3145140

3239254

3145264

3145140

3239254

Single Ball

Plug Set

Ball plug

Snap ring

3142813

3181788

3226873

3142813

3181788

3226873

3139418

3182488

3230487

3139418

3182488

3230487

3139418

3182488

3230487

3145266

3145140

3239254

3145266

3145140

3239254

How to order Replacement packing

1.    Pipe size and type of joint

2.    Code number non casting or forging

3.    Type of products being handled ( if acid, give concentration)

4.    Max.operation pressure

5.    Operating temperature
