KEMPER STYLE 3″ HAMMERSEAL UNION BT-PS300A

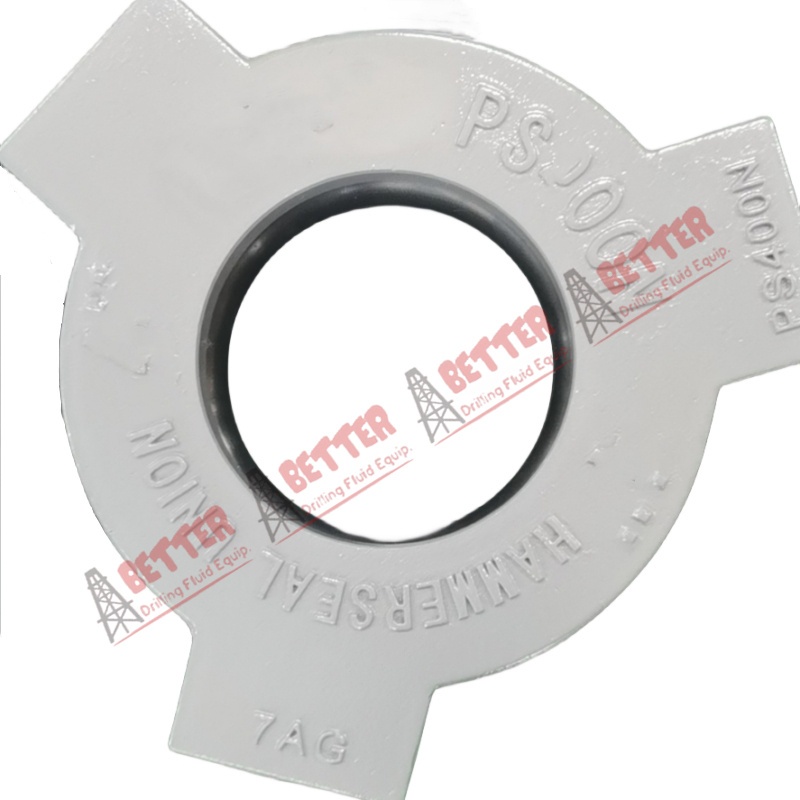

Hammer seal Union is usually used for connecting mud tanks, even if mud tanks aren’t aligned perfectly (up to 7°), we can hammer these tough unions tight to a non-leak seal. The externally threaded female port welds to a Schedule 80 stub pipe at the tank wall. The connecting pipe extends through the nut component, the o-ring and then the female portion of the union. When the internally threaded lug nut is hammered tight onto the female, the o-ring is compressed into an oblong cross section to seal up to 150-psi against the outside diameter of the connecting pipe. Hammerseal Union is ideal to provide the solution for mud tank’s connection. BETTER hammerseal union is designed basing on Kemper company, which can provide a quick joints and easy operation.
Features-
➢ Casting steel sub & nut, and molded nitrile O-ring (NBR) provides a compression seal
➢ Adopt ANSI/EU Std. Butt-weld end connection, GB Standard available upon request
➢ Consistent to KEMPER Hammer-seal Union
➢ Grey or Red Nut & Sub, customized color & logo available
Technical Parameter-
➢ Working medium: Oil based mud, water-based mud or other drilling fluid
➢ Medium temperature: 0℃~90℃, Viton seal for Hi-temp.
➢ Ambient temperature:-40℃~55℃
➢ Sealing fluid pressures up to 150 psi
Specification
|
BETTER HAMMERSEAL UNIONS |
|||
|
Part No. |
Connects to Nominal Size |
Female Component Welds to |
Description |
|
BT- PS300A |
3” |
4” |
3” Hammerseal Union assembly |
|
BT- PS400A |
4” |
6” |
4” Hammerseal Union assembly |
|
BT- PS600A |
6” |
8” |
6” Hammerseal Union assembly |
|
BT- PS800A |
8” |
10” |
8” Hammerseal Union assembly |
|
BT- PS100A |
10” |
12” |
10” Hammerseal Union assembly |
|
BT- PS120A |
12” |
14” |
12” Hammerseal Union assembly |
|
BT- PS140A |
14” |
16” |
14” Hammerseal Union assembly |
|
BT- PS160A |
16” |
18” |
16” Hammerseal Union assembly |
|
BT- PS180A |
18” |
20” |
18” Hammerseal Union assembly |
|
BT- PS200A |
20” |
22” |
20” Hammerseal Union assembly |
|
BT- PS220A |
22” |
24” |
22” Hammerseal Union assembly |
|
BT- PS240A |
24” |
26” |
24” Hammerseal Union assembly |
|
BT- PS260A |
26” |
28” |
26” Hammerseal Union assembly |
|
BT- PS280A |
28” |
30” |
28” Hammerseal Union assembly |
